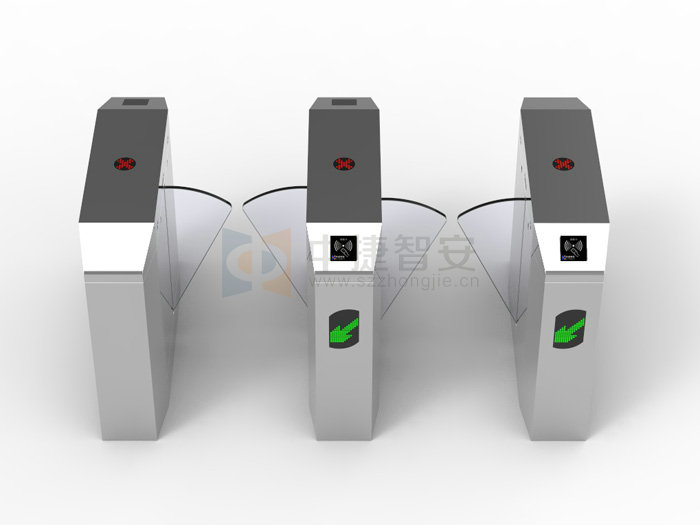

Bridge luxury star star gate ZOJE-Y708
Product Categories:Flap Turnstile gate series
Smart wing gate is intelligent three roller gates and swing gate is the upgrading of products, smart wing gate mainly for the staff channel of intelligent management of high-tech products, is intelligent three roller gates and swing gate is the upgrading of products, the product fine processing, full-featured, high grade. Smart wing gate is mainly ...
National Hotline:4009-969-805
- product description
- Product Specifications
|
HongKong ZOJE Intelligent Technology Co,.Ltd
|
|
Function
|
Flap Turnstile
|
|
Size
|
1200/1400*300*1000mm
|
|
Weight
|
Single:65kg Double:85kg
|
|
Material
|
Stainless Steel 304,SS316(optional)
|
|

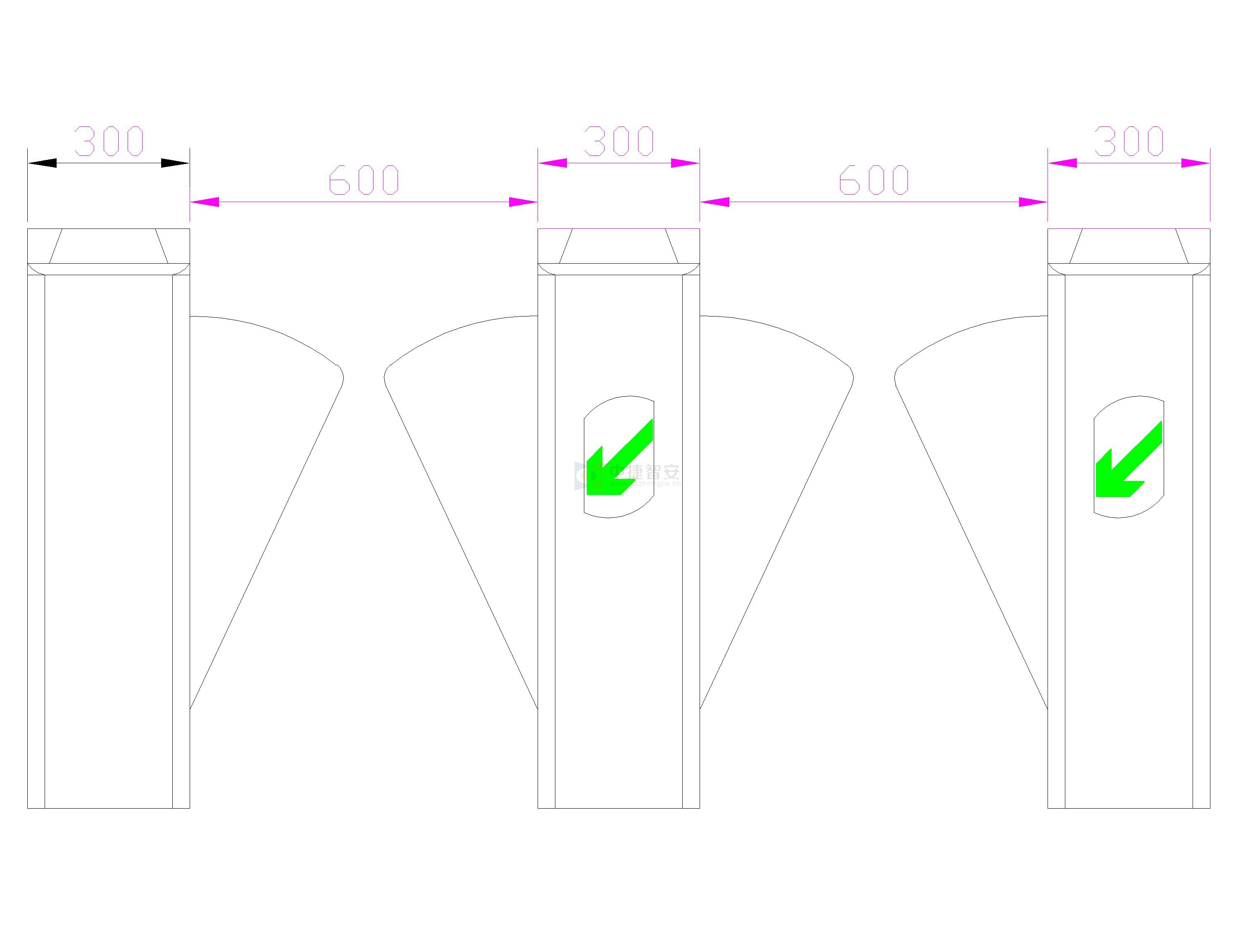

Channel Width
|
600mm, Customize for 900mm
|
|
Use environment
|
Better Indoor
|
|
Infrared Sensor
|
3-10 pairs (customize for more)
|
|
Bacpup Battery
|
Yes
|
|
Power off
|
Open automatic
|
|
Speed
|
30-45 person /min
|
|
Power input
|
AC110V/220V
|
|
Working Temperature
|
35℃– 60℃
|
|
Working Humidity
|
95% (No freeze)
|
|
Signal input
|
Dry contact/Relay
|
|

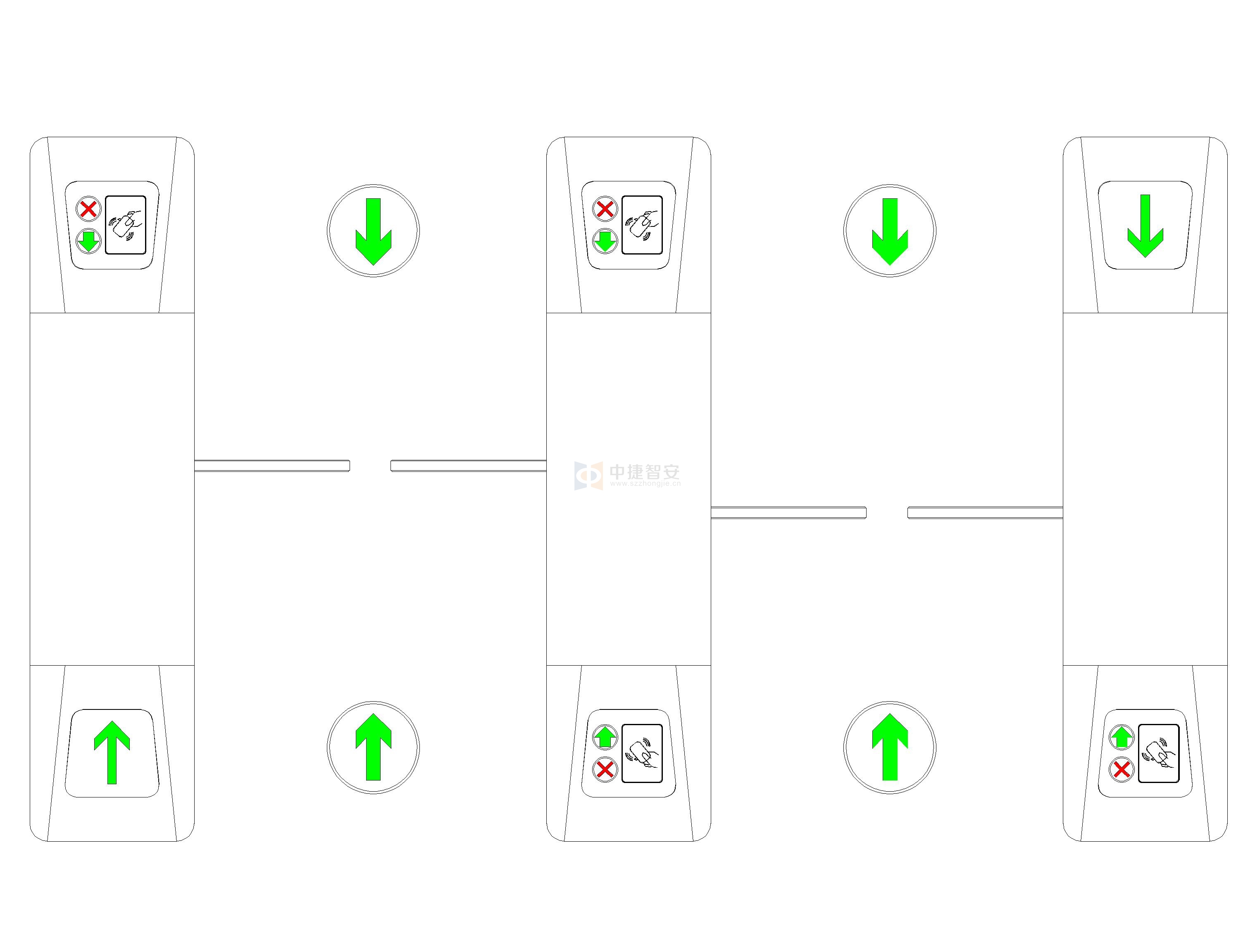

Direction
|
One/Two way
|
|
Waterproof
|
IP65
|
|
Communication
|
TCP/IP or RS485
|
|
Advantage
|
More faster,better for heavy traffic like metro station.
|
Technical parameter:

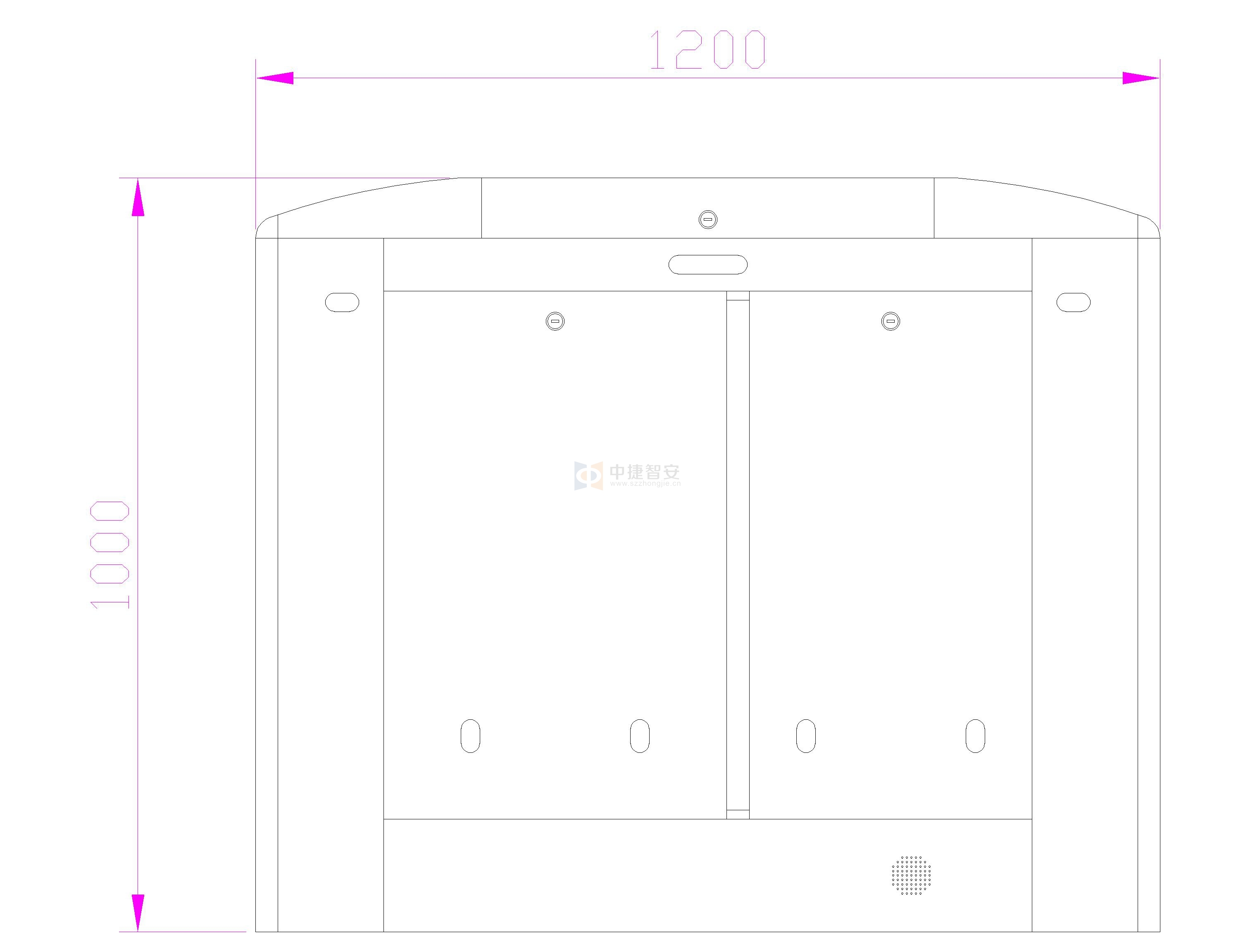

Outline dimension: L1200mm*280mm*1000mm (1400mm optional)
Material: SU304 stainless steel technology: light wire drawing type
Material thickness: 1.2mm/1.5mm/2.0mm optional
Channel width: 600mm
Way: one-way / two-way
Control software; access control system / electronic ticketing system / consumer system, etc.
Read and write: ID card / IC card / ID card / fingerprint, face recognition / bar code platform / static test instrument
Working environment: indoor / outdoor (recommended frame pergola)
Power supply: AC200V/AV110V (optional) 50HZ
Working environment temperature: -65 C -15 C
Relative humidity: less than 95%, no condensation
Pass speed: 40/ minutes
Input interface: relay signal
Normal service life: 3 million faults
Communication interface: RS485/TCPIP
Scalable: counting function, voice alarm function, video capture function.
